Isingeniso
Abathengi bezibani besimanje, kusukela kubanikazi bezindlu kuya kubaphathi bezikhungo, manje sebefuna izinto ezihambisana nezidingo zabo, zonga amandla, futhi zilethe ukunethezeka okubonakalayo. Phakathi kwezinketho eziguquguqukayo kakhulu kulo mkhuba zicimekaIzibani ze-LED, ngenxa yobuhle be-sleek, ukusebenza kahle okuphezulu, nokukhanya okulungiswayo.
Kulo mhlahlandlela, sikhethe Izibani Eziphezulu Eziyi-5 Ezi Dimmable LED Batten Eziphezulu zehhovisi namakhaya ngo-2025, ezihlaziywe ngokusebenza kwazo, ikhwalithi yokwakha, nezinketho zokulawula ukufiphala. Uzofunda futhi ukuthi i-LED dimming isebenza kanjani nokuthi yiziphi izincazelo ezibaluleke kakhulu ngaphambi kokuthenga. Ake siqale!

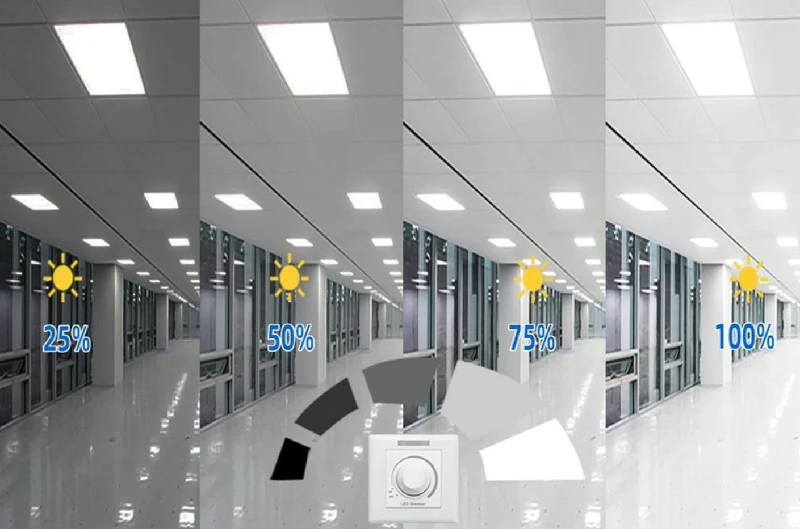

I-Dimming isebenza kanjani ku-LED Batten Lights?
Ukufiphala kokulungiswa kwe-LED akukhona nje ukwehlisa ukukhanya, kodwa futhi mayelana nokulawula ububanzi bamanje kanye ne-pulse ukuze uzuze kokubili ukonga amandla nokuvumelana nezimo. Ake sikuhlukanise kafushane:
-
0–10V Ukufiphala
-
I-DALI Dimming
-
I-Triac / Isigaba-I-Cut Dimming
-
I-Flicker-Abashayeli Bamahhala
Kungani Abathengi Bakhetha Ukukhanya Kwe-Batten Ye-LED Engacimekiyo?
Ukukhanya kwe-batten okucimele kunikeza ukonga amandla okwengeziwe, futhi kuguqula indlela ukukhanya okuhlangana ngayo nesikhala ngale:
(1) Ukusebenza kahle kwamandla:Yehlisa ukusetshenziswa kwamandla lapho ukukhanya okugcwele kungadingeki.
(2) Ukunethezeka Okubonwayo:Lungisa ukukhanya ukuze unciphise ukuxhopha, ukukhathala, nokucindezeleka kwamehlo.
(3) I-Smart Control Ready:Ihambisana ne-automation kanye namasistimu wezinzwa.
(4) I-Ambience Ethuthukisiwe:Qondisa ukukhanya kwezikhathi ezahlukahlukene zosuku noma ukuma kwenhliziyo.
(5) Ukonga{1}Isikhathi eside:Ukumosheka kwamandla amancane kanye nesikhathi eside sokuphila kwe-LED kusho izindleko eziphansi zokunakekela.
Izibani eziphezulu ezi-5 ezinciphayo ze-LED Batten ngo-2025
I-Philips LED ProjectLine All-ku-One Strip Batten 40/33/29W
I-ProjectLine Strip Batten iyisibani se-LED esilandelanayo esivela ku-Philips esinikeza izilungiselelo eziningi zokukhanya ngeyunithi eyodwa, elawulwa iswishi yakho yokukhanya ekhona. Amaleveli wamandla alungisekayo kanye nomklamo ohlanzekile awenza ipulaki-futhi{2}}udlale ukuthuthukiswa ukuze kufakwe ngokushesha.
Izici Eziyinhloko:
• I-wattage ekhethekayo:29W / 33W / 40W izinketho zokuphumayo.
• Ukusebenza kahle okukhanyayo:kufika ku-120 lm/W, iletha ukukhanya okukhanyayo nokufanayo.
• Izinga lokushisa lombala:4000K emhlophe engathathi hlangothi (ilungele amahhovisi).
• Ukufiphaza:Ihambisana namasistimu wokufiphalisa angu-0–10V.
• Ukwakhiwa:I-LED ehlanganisiwe enezindlu eziqinile ze-aluminium kanye ne-opal diffuser.
• Ukufakwa:Isebenzisa iziqeshana ezihlanganisiwe zokukhweza isikulufu{0}}futhi inesixhumi se-GU10 sokunamathiselwe kwe-bulb okulula.
Kulungele:
Ihhovisi, amagaraji, izindawo zokusebenzela, nezindlu zangaphansi.
Panasonic LED Tri Color Batten
I-Panasonic LED Tri Color Batten, isisombululo sokukhanyisa esishintshashintshayo esivumelana nanoma yisiphi isilungiselelo. Ivumela abasebenzisi ukuthi bashintshe phakathi kwamathoni afudumele, angathathi hlangothi, noma asemini besebenzisa{1}}iswishi yokuguqula eyakhelwe ngaphakathi, ukuze bathole isimo abasifunayo sesikhala.
Izici Eziyinhloko:
• Kathathu-umbala we-CCT oshintshwayo: 3000K / 4000K / 6500K.
• Ukusebenza kahle kokukhanya okuphezulu:~110 lm/W.
• Izinketho zamandla:Itholakala ku-18W / 36W.
• Ukuhambisana kokufiphaza:Isekela ukufiphala kwe-Triac.
• Yakha:Izindlu ze-Slimline Polycarbonate Polycarbonate ezinokucwebezela{0}}i-diffuser yamahhala.
• Ukuphepha:Iza nokuvikelwa kokuhlinzwa, ukuthobela ukuphepha njenge-Bureau of Indian Standards (BIS).
Okungcono kakhulu:
Amakhaya, izindawo zokudlela, namahhovisi adinga ukukhanya kwemizwa okuvumelana nezimo.
I-Toppo Lighting Kaston UGR Batten Light 200mm
IUchungechunge lwe-Kaston UGRyakhelwe ukukhanyisa okuphrofeshinali, iletha ukufiphala okushelelayo, ukuxhopha{0}ukukhanya kwamahhala, nokuxhumeka kwe-modular. Izindlu zayo ze-aluminium zihlinzeka ngokukhipha ukushisa okuhle kakhulu, kuyilapho i-prismatic diffuser inikeza abasebenzisi ukukhanya okukhanyayo okuphansi.
Izici Eziyinhloko:
• Ukunethezeka kokubukwayo:UGR<19 glare control, flicker-free driver.
• Izinketho eziningi zokufiphalisa:0–10V, DALI.
• Ibanga lamandla:25/30/35/40 W, Ukusebenza kuze kufike ku-140 lm/W.
• Ibanga le-CCT: 3500K–6800K.
• Izinketho zokukhweza:Ukufakwa okungaphezulu, okumisiwe, noma okuxhumekayo.
• Okungeziwe ongakukhetha:Inzwa yokunyakaza, ikhophi yasenqolobaneni yesimo esiphuthumayo, noma ukuhlanganiswa kwe-DALI.
Okungcono kakhulu:
Amahhovisi, amagumbi okufundela, izikhungo zokunakekelwa kwempilo, nezitudiyo.
I-TUBU IP66 LED Batten Light L10-S Series Pro
I-TUBU IP66 LED Batten Light L10-I-S Series Pro iyacwayiza{3}}indawo yokukhanya ye-LED yamahhala, neyonga amandla eklanyelwe izindawo ezinokhahlo. Ifaka isilinganiso se-IP66 sokuvikela uthuli namanzi kanye nesilinganiso se-IK10 sokumelana nomthelela.
Izici Eziyinhloko:
• Amandla akhethekayo ne-CCT:18W–60W, 2700K kuya ku-6500K.
• Ukusebenza kahle:Kufika ku-185Lm/W.
• Izinketho zokufiphaza:0–10V noma i-DALI dimming.
• Umshayeli:Ihlukanisiwe, icwebezela{0}}mahhala futhi i-SAA, CE, ne-RoHS yagunyazwa.
• Izinto:Umzimba we-aluminium one-PC diffuser, i-anti{0}}i-corrosion coating.
• Imisebenzi eyengeziwe:Inzwa ye-Microwave nenguqulo yesimo esiphuthumayo iyatholakala.
• Ukufakwa:Ivumela{0}}izintambo eziqondile ngezinketho zezintambo ezingu-5x2.5mm² futhi ihlanganisa nentambo yokuphepha.
Okungcono kakhulu:
Ihhovisi, izindawo zokugcina izimpahla, izindawo zokupaka izimoto, imigudu, indawo yokugcina izinto ebandayo.
I-Osram SubstiTUBE T8 Motion Sensor Dimmable Batten
Inzwa yokunyakaza ye-SubstiTube T8 ivumela ukushintshwa okusheshayo, okulula, nokuphephile kwamalambu e-fluorescent ngaphandle kokuhlanganisa kabusha igiya lokulawula elivamile (CCG). Leli shubhu le-LED lifaka inzwa ye-microwave ehlanganisiwe ethola ukunyakaza, yonga kufika ku-90% ekongeni amandla.
Izici Eziyinhloko:
• Ukunethezeka kokubukwayo:UGR<19 glare control, flicker-free driver ensures eye-friendly illumination.
• Izinketho eziningi zokufiphalisa:0–10V, DALI, namamodeli angacimeki-okuzithandela.
• Ibanga lamandla:25/30/35/40 W, ukusebenza kahle kufika ku-140 lm/W.
• Ibanga le-CCT:3500K–6800K (efudumele ukuya kokumhlophe okupholile).
• Izinketho zokukhweza:Ukufakwa okungaphezulu, okumisiwe, noma okuxhumekayo kwesakhiwo esivumelana nezimo.
• Okungeziwe ongakukhetha:Inzwa yokunyakaza ehlanganisiwe, isipele esiphuthumayo, noma ukuhlanganiswa kwesistimu ye-DALI.
Okungcono kakhulu:
Amahhovisi, amagumbi okufundela, izikhungo zokunakekelwa kwempilo, nezitudiyo.
Ithebula Lokuqhathanisa Ngokushesha
|
Ibhrendi |
Imodeli |
Ububanzi be-Wattage |
Ukusebenza kahle |
Ububanzi be-CCT |
Ukufiphala |
Isici Esibalulekile |
Iwebhusayithi Esemthethweni |
|
|
I-LED ProjectLine Konke-ku--One Strip Batten |
29–40W |
Kufika ku-120 lm/W |
4000K |
0–10V |
Izilungiselelo zamandla amaningi, ipulagi-kanye{1}}nokufakwa kokudlala |
|
|
|
I-LED Tri Color Batten |
18–36W |
~110 lm/W |
3000K / 4000K / 6500K |
I-Triac |
Kathathu-i-CCT eshintshwayo yombala, i-slimline glare{1}i-diffuser yamahhala |
|
|
|
I-Kaston UGR Batten Light 200mm |
25–40W |
Kufika ku-140 lm/W |
3500K–6800K |
0–10V / DALI |
UGR<19, flicker-free, optional motion/emergency/DALI |
|
|
|
IP66 LED Batten L10-S Series Pro |
18–60W |
Kufika ku-185 lm/W |
2700K–6500K |
0–10V / DALI |
IP66 & IK10, inzwa ye-microwave nezimo eziphuthumayo, ukusebenza kahle okuphezulu |
|
|
|
I-SubstiTUBE T8 Motion Sensor Dimmable Batten |
25–40W |
Kufika ku-140 lm/W |
3500K–6800K |
0–10V / DALI |
Inzwa yokunyakaza edidiyelwe, icwebezela{0}}mahhala, ukukhweza okuvumelana nezimo |
Ungakukhetha Kanjani Ukukhanya Kwe-Batten Kwe-LED Okufanele?
Uma ukhetha ukukhanya kwe-batten okungacimeki, izici ezimbalwa ziqinisekisa ukuthi uthola ukulungiswa okulungile kwezidingo zakho:
(1) Ukukhanya (lm/W):Bheka ukusebenza kahle kokukhanya okuphezulu, ngokuvamile okungaphezu kuka-110 lm/W ukuze wehlise izindleko zamandla.
(2) Ukucwebezela (UGR):Ngobaamahhovisi noma izindawo zokufunda, khetha imiklamo ye-UGR ukuze unciphise ukukhathala okubukwayo. UGR<19 batten fixtures (like Toppo Kaston) are popular for that.
(3) Uhlobo Lokufaka:Nquma ukuthi ingabe indawo{0}}ephakanyisiwe, ehlehlisiwe, noma emisiwe iyasifanela isakhiwo sakho.
(4) Ukuhambelana kokufiphaza:Qinisekisa usekelo lwe-0–10V, DALI, noma i-Triac dimming, kuye ngesistimu yakho yokulawula.
(5) Iwaranti nezitifiketi:Qinisekisa ukuthi umkhiqizo wakho uhlangabezana nezindinganiso ezibalulekile njenge-CE ne-RoHS. Funda kabanzi esihlokweni sethu esinemininingwane:Izitifiketi Ezibalulekile Ongazibheka Lapho Ungenisa Izibani Ze-LED.
(6) Ukufaneleka Kwendawo:Ezindaweni eziswakeme noma zezimboni, khetha amamodeli we-IP65/IP66 angangeni manzi.
Ngamafuphi, ukukhanya kwe-batten ye-LED ecishe ifane nokukhanya okuphezulu, ukukhanya okuphansi, nokulawula ukufiphala kuhlala kusebenza kangcono ngokukhanya okunethezekile kunokujwayelekile.
Imibuzo Evame Ukubuzwa
Q: Ingabe zonke izibani ze-LED zicimeka?
A: Cha, akuwona wonke amamodeli acimeka. Ngaso sonke isikhathi hlola ukuthi umkhiqizo uyayisekela yini i-0–10V, i-DALI, noma i-TRIAC dimming ngaphambi kokuthenga.
Q: Iliphi izinga lokushisa lombala elingcono kakhulu lokukhanyisa ehhovisi?
A: Ithoni emhlophe emaphakathi (ezungeze u-4000K) ihlinzeka ngokugqama okulinganayo futhi inciphisa ubunzima bamehlo, iyenze ilungele amahhovisi namakilasi.
Q: Ngingakwazi ukwenza ngokwezifiso i-wattage noma i-CCT yephrojekthi yami?
A: Nakanjani! Abakhiqizi abaningi bokukhanya kwe-batten njenge-Toppo Lighting banikeza amandla okusebenzisa ngokwezifiso kanye nezinketho ze-CCT, ukufanisa umklamo wakho wokukhanyisa othize noma umgomo wezindleko zamandla.
Isiphetho
Kusukela ku-ProjectLine elungisekayo ye-Philips kuya ku-Toppo Lighting's UGR-eqinisekisiwe Kaston Light, kunesixazululo sayo yonke indawo, kungakhathaliseki ukuthi yindawo yokuhlala, yezohwebo, noma yezimboni. Uma uhlela ukudayisa noma ukwenza ngokwezifiso lezi zibani ze-LED, qinisekisa ukuthi zisebenza ngokufiphala ngendlela ofuna ngayo, futhi uthobelane namazinga emakethe eqondiwe ukuze ugweme ukubambezeleka kwephrojekthi.
Thola Usizo Lochwepheshe Lwemiklamo Yakho Ye-LED Batten
Njengomhlinzeki oholayo wezibani ze-LED nesisombululo, kungakhathaliseki ukuthi uthuthukisa izibani zasehhovisi/zasekhaya, noma ufuna ukuthola ukunikezwa kwe-OEM/ODM, i-Toppo Lighting inikeza{0}}{1}}ngokubonisana kanye nokwenza ngokwezifiso umkhiqizo.Khuluma nethimba lethu namuhlaukuze uthole isicaphuna esisheshayo noma iseluleko sokucacisa.
