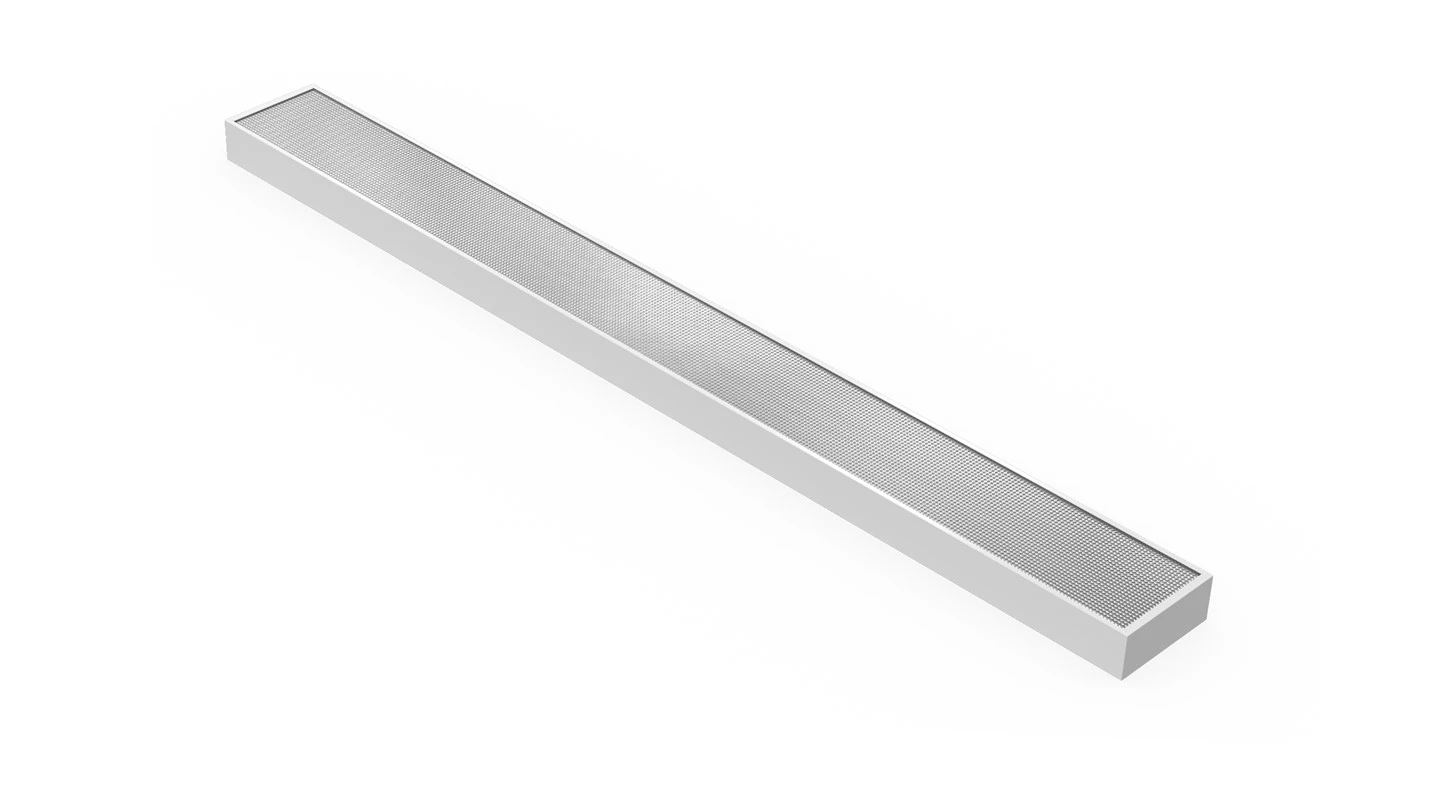

I-Brighton UGR Batten Light

Brighton UGR Batten Light

Brighton-Batten2

Brighton-Batten3

Brighton-Batten4

Brighton-Batten5

Incazelo:

Izibani ze-Brighton battens ziyidizayini entsha, engagcwalisi i-UGR yokubona kuphela<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.

Izici:

>UGR<19 with prismatic diffuser

>Amandla ne-CCT bashintsha umshayeli we-LED

>120mm|150mm ububanzi obutholakalayo

>I-Ra80 noma i-Ra90 , i-SDCM<3

>PHEZULU ukukhanya @ njalo 2X4W njengenketho

>I-besa yokugcina noma yangemuva yokungena kwekhebula

>Imisebenzi ehlukahlukene ehlukene njengezinketho

>4ft / 5ft / 6ft dimension iyatholakala

>Kuhlehlisiwe / Ukukhweza phezulu / Ukufakwa kokumiswa

>Iwaranti yeminyaka emi-5

Thumela ukuPhenya

Landa

Incazelo

I-Parameters yobuchwepheshe

ISINGENISO:

Ukukhanyisa kwe-Brighton Batten LED kunikeza 120 mm, 150 mm ububanzi njengezinketho, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.

IMPAHLA:

I-Brighton UGR Batten 150mm ukukhanya kwethu kwakamuva, okuklanyelwe ukusebenza okuphakeme nokuvumelana nezimo. Ngobubanzi obungu-150mm, lokhu kukhanya kuhlanganisa ngaphandle komthungo kunoma yisiphi isikhala futhi kunokukhanya okuphansi (UGR)<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.

Ikhodi ye-oda	Ububanzi	Amandla Alinganiselwe	LM/W	Lumen	I-SDCM/Ra	Watt/CCT Shintsha	Ubukhulu bomkhiqizo	I-GW/CTN	I-QTY/CTN
I-BT500-04W-DT1-40F01	120mm	20W/40W	uhlobo.130	uhlobo.2600/5200	<3 / Ra80/90	Y	L1200xW120xH60	8.84kg	ama-4pcs
I-BT500-05W-DT1-50F01	120mm	30/50W	uhlobo.130	uhlobo.3900/6500	<3 / Ra80/90	Y	L1500xW120xH60	11.12kg	ama-4pcs
I-BT500-06W-DT1-60F01	120mm	30/60W	uhlobo.130	uhlobo.3900/7800	<3 / Ra80/90	Y	L1800xW120xH60	14.52kg	ama-4pcs
I-BT510-04W-DT1-40F01	150mm	20/40W	uhlobo.130	uhlobo.2600/5200	<3 / Ra80/90	Y	L1200xW150xH60	11.12kg	ama-4pcs
I-BT510-05W-DT1-50F01	150mm	25/50W	uhlobo.130	uhlobo.3900/6500	<3 / Ra80/90	Y	L1500xW150xH60	13.40kg	ama-4pcs
I-BT510-06W-DT1-60F01	150mm	30/60W	uhlobo.130	uhlobo.3900/7800	<3 / Ra80/90	Y	L1800xW150xH60	16.80kg	ama-4pcs
